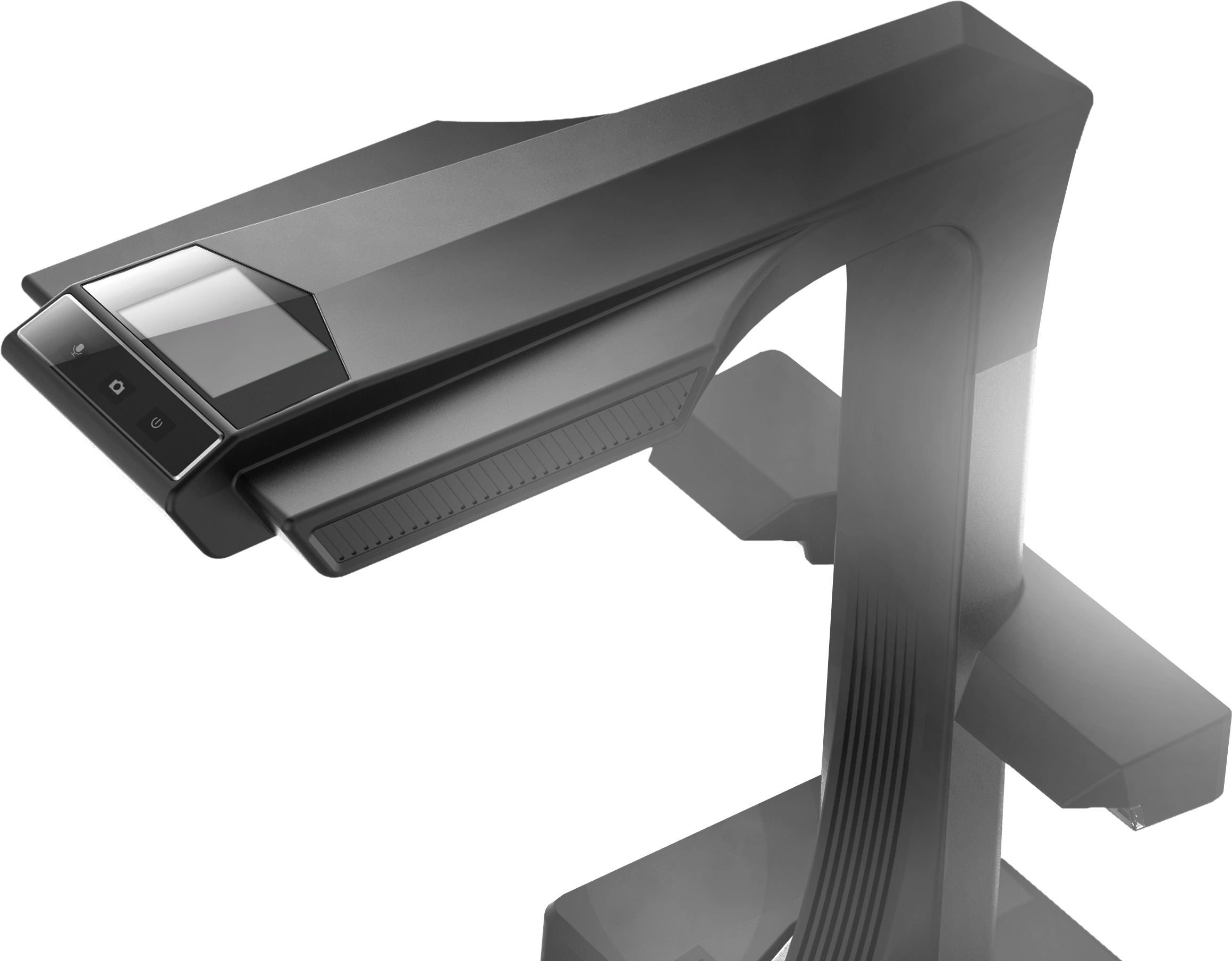

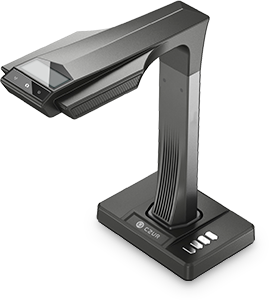

CZUR ET Smart Book Scanner
Just Turn the Page and Scan
Book scanning has long been a tedious, time-consuming task. Our team believed that the traditional method was due for an overhaul, so we researched, experimented, and innovated a revolutionary method that will save time so you can save more of your valuable books and documents.
In an industry-first, CZUR developed Flattening Curve technology and coupled it with smart image processing software. Housing these features in powerful hardware, the CZUR ET Smart Book Scanner makes book scanning as easy as turning a page, completely eliminating expensive, cumbersome and slow process of outdated systems.
The World’s First Flattening Curve Technology
Book Scanning Has Never Been Easier
  • No Need
    to Unbind
  • Hardware
    Technology
  • Advanced
    Algorithm
A Book Scanner with Ultimate Versatility
Packed with Features to Enhance Any Professional Setting
  • Two Pages
    in 1.5s
  • 16MP
    HD Camera
  • A3 Format
    Support
  • OCR
  • Side Lighting
  • Multiple
    Operating Modes
  • CZUR Cloud
  • Multi-Material
    Compatibility
  • Visual Presenter
Intelligent Image Processing Software
A Scanner that Doubles as Your Graphic Designer
  • Professional Trimming
  • Auto-Flatten & Smart Paging
  • Five Color Modes
  • Batch Edit and Export
Samples
  • Book
  • Magazine
  • Drawing
  • Picture
  • Blueprint
  • Receipt
Original Page
CZUR Scan
ET16 / ET16 Plus Specifications
ET16 Plus
ET16
Characteristics
Product type Documents, Books, Magazines,
Forms, Invoices, Certificates,
Business cards and Sculpture object
Documents, Books, Magazines,
Forms, Invoices, Certificates,
Business cards and Sculpture object
Sensor CMOS CMOS
Pixel 16MP 16MP
Resolution 4608*3456 4608*3456
DPI(default) 250 250
Format ≤A3 ≤A3
Speed Flat single page≈1.5s/page;
Books≈1.5s/dual pages
Flat single page≈1.5s/page;
Books≈1.5s/dual pages
Pre scan 0s 0s
Image format JPG, PDF, TIFF JPG, PDF, TIFF
Color bit depth 24 bits 24 bits
Export format JPG, PDF, Searchable PDF, Word,
Excel, TIFF
JPG, PDF, Searchable PDF, Word,
Excel, TIFF
Video streaming format MJPG MJPG
Preview PC-Visual presenter: 3072*1728@12Fps;
PC-Scanning:1536*1152@20Fps
PC-Visual presenter: 3072*1728@12Fps;
PC-Scanning:1536*1152@20Fps
USB USB 2.0 High-Speed USB 2.0 High-Speed
Light source Natural light and LED lights Natural light and LED lights
Top LED lights
Side lights ×
Focus mode Fixed focus Fixed focus
Scanning access Device Control, Software triggering,
Hand button, Foot pedal
Device Control, Software triggering,
Hand button, Foot pedal
System support XP, Win 7/ 8/10, 32/64-bit; macOS 10.11
and above
XP, Win 7/ 8/10, 32/64-bit; macOS 10.11
and above
Configurations
Prossessor 32-bit MIPS CPU 32-bit MIPS CPU
Laser - assisted 3 laser rays 3 laser rays
DDR 1G bit 1G bit
Image cache 2GByte TF Hi-Speed DDR
LCD 2.4", 4:3, 320x240 2.4", 4:3, 320x240
MIC
Buzzer ×
Hand button
Foot pedal
Black document pad
Power Input:100 to 240V, 50/60Hz; Output: 9V/2A Input:100 to 240V, 50/60Hz; Output: 9V/2A
Specific functions
OCR
OCR languages 187 187
Visual presenter USB-PC Visual presenter USB-PC Visual presenter
Wi-Fi Support, only 2.4GHz brand ×
Image storage(Wi-Fi mode) Up to 150 pieces ×
Software features
Flattening Curve
Smart paging
Smart tilt corrections and auto-cropping
Professional trimming
Background purifying
Finger removal
Color mode Color, Patterns, Stamps, Gray scale, B&W Color, Patterns, Stamps, Gray scale, B&W
Auto-scan
Manual Selection scanning
Screen recording
Video recording
Optical features
Element 3G2P+IR 3G2P+IR
Sensor Size 1/2.3" 1/2.3"
EFL 4.55mm 4.55mm
BFL >3.4mm >3.4mm
F/NO 4.5 4.5
IR Cut 650±10nm 650±10nm
Field of view 82° 82°
Distortion <0.5% <0.5%
Packaging and
Accessories
Product appearance Black/White Black/White
Product dimensions 375*220*390mm(L*W*H) 375*220*390mm(L*W*H)
Weight 1.5KG(Net) 1.5KG(Net)
Packaging list Scanner, USB cable, Power adapter, Hand
button, Foot pedal, Black document pad,
Specialized finger cots, CD, User manual,
Warranty card, Quality certificate
Scanner, Side lights,USB cable, Power
adapter, Hand button, Foot pedal, Black
document pad, Specialized finger cots, CD,
User manual, Warranty card, Quality certificate
